Nennspannung: | 0.6/1kV | Isolierung: | XLPE |
---|---|---|---|
Leiter: | bloßes Kupfer | Kern: | 1 oder 3 |
Farbe: | Rot, Gelb, grün | Verpackung: | Schlagzeug |
Markieren: | lszh Stromkabel,lszh feuerbeständiges Kabel |

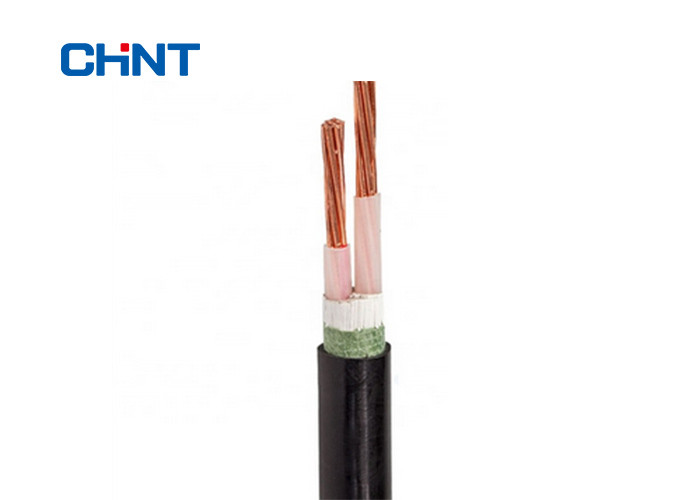

Halogenfreies, raucharmes Stromkabel gemäß BS6724
detaillierte Produktbeschreibung
Produktbeschreibung
Entwickelt für Anwendungen mit fester Stromversorgung und Steuerung, bei denen kein mechanischer Schutz erforderlich ist. Geeignet für den Einsatz im Innen- und Außenbereich oder zum Verlegen in Beton, jedoch nicht zum direkten Vergraben oder Eintauchen in Wasser. LSZH-Kabel sorgen für erhöhte Sicherheit im Brandfall, da im Brandfall praktisch keine giftigen Dämpfe entstehen. Deutliche Vorteile gegenüber PVC-Kabeln: geringe Brandlast, geringe Rauchentwicklung, reduzierte Brandausbreitung.
Anwendung
Diese Stromkabel werden für die Stromversorgung in Niederspannungsinstallationssystemen verwendet. Mit einem zusätzlichen mechanischen Schutz eignen sie sich gut für den unterirdischen Einsatz in industriellen Anwendungen. Diese Kabel können an Kabelrinnen, in Rohrleitungen oder an Wänden befestigt werden.
Einsatz in Raffinerien, Bergwerken, Hotels, Schulen, Tunneln, Hochbauten, Krankenhäusern, Kraftwerken, Rechenzentren, Geschäftszentren, in denen Brandgefahr besteht
Konstruktion
1. Leiter: Kupfer
Bis 16 mm 2 : Massivkupferleiter Klasse 1
Über 16 mm 2 : Kupferlitzen der Klasse 2
2. Isolierung: XLPE
3. Füllstoff: LSZH
4. Außenmantel: LSZH (Low Smoke Zero Halogen)
Standards
International: IEC 60502, IEC 60228, IEC 60332, IEC 60754
China: GBT 12706.1-2008, GBT 19666-2005
Andere Normen wie BS, VDE und ICEA auf Anfrage
Technische Daten
Nennspannung: 0,6 / 1 kV
Maximale Leitertemperatur: Unter normalen (90 ℃), Not- (130 ℃) oder Kurzschlussbedingungen nicht länger als 5 s (250 ℃).
Mindest. Umgebungstemperatur: Das Kabel muss vorgewärmt werden, wenn die Umgebungstemperatur unter 0 ° C liegt
Mindest. Biegeradius: einadriges Kabel 20 (d + D) ± 5%
Mehradriges Kabel 15 (d + D) ± 5%
Zertifikate
CE, SGS, KEMA und weitere auf Anfrage
Technische Spezifikationen
Nom. Querschnitt des Leiters | Stränge Nr./Dia. Des Dirigenten | Isolierung Dicke | Manteldicke | Ca. OD | Ca. | Max. Gleichstromwiderstand des Leiters (20 ℃) | Prüfspannung AC | Aktuelle Bewertung | |
Gewicht | In der Luft (A) | Im Boden (A) | |||||||
1 × 1,5 | 1 / 1,38 | 0,7 | 1.4 | 5.6 | 43 | 12.1 | 3.5 | 26 | 33 |
1 × 2,5 | 1 / 1,76 | 0,7 | 1.4 | 6.0 | 54 | 7.56 | 3.5 | 34 | 43 |
1 × 4 | 1 / 2.23 | 0,7 | 1.4 | 6.4 | 71 | 4,61 | 3.5 | 44 | 56 |
1 × 6 | 1 / 2,74 | 0,7 | 1.4 | 7.0 | 93 | 3,08 | 3.5 | 56 | 70 |
1 × 10 | 7 / 1,33 | 0,7 | 1.4 | 8.2 | 137 | 1,83 | 3.5 | 77 | 94 |
1 × 16 | 7 / 1,67 | 0,7 | 1.4 | 9.2 | 195 | 1.15 | 3.5 | 100 | 120 |
1 × 25 | 7 / 2.10 | 0.9 | 1.4 | 10.9 | 292 | 0,727 | 3.5 | 130 | 155 |
1 × 35 | 7 / 2,48 | 0.9 | 1.4 | 12.0 | 389 | 0,524 | 3.5 | 160 | 185 |
1 × 50 | 10 / 2,56 | 1,0 | 1.4 | 13.2 | 514 | 0,387 | 3.5 | 195 | 220 |
1 × 70 | 14 / 2,56 | 1.1 | 1.4 | 15.1 | 716 | 0,268 | 3.5 | 245 | 270 |
1 × 95 | 19 / 2,56 | 1.1 | 1.5 | 16.9 | 969 | 0,193 | 3.5 | 300 | 320 |
1 × 120 | 24 / 2,56 | 1.2 | 1.5 | 18.6 | 1,203 | 0,153 | 3.5 | 349 | 365 |
1 × 150 | 30 / 2,56 | 1.4 | 1.6 | 20.6 | 1,479 | 0,124 | 3.5 | 400 | 410 |
1 × 185 | 37 / 2,56 | 1.6 | 1.6 | 22.7 | 1,853 | 0,0991 | 3.5 | 465 | 465 |
1 × 240 | 48 / 2,58 | 1.7 | 1.7 | 25.3 | 2.408 | 0,0754 | 3.5 | 550 | 540 |
1 × 300 | 60 / 2,58 | 1.8 | 1.8 | 27.9 | 2.988 | 0,0601 | 3.5 | 635 | 610 |
1 × 400 | 60 / 2,93 | 2,0 | 1.9 | 31.5 | 3.860 | 0,047 | 3.5 | 745 | 695 |
1 × 500 | 60 / 3,33 | 2.2 | 2 | 35,2 | 4.840 | 0,0366 | 3.5 | 860 | 780 |
1 × 630 | 60 / 3,76 | 2.4 | 2.2 | 39.4 | 6,182 | 0,0283 | 3.5 | 990 | 880 |
2 × 1,5 | 1 / 1,38 | 0,7 | 1.8 | 9.5 | 106 | 12.1 | 3.5 | 20 | 31 |
2 × 2,5 | 1 / 1,76 | 0,7 | 1.8 | 10.3 | 133 | 7.56 | 3.5 | 27 | 41 |
2 × 4 | 1 / 2.23 | 0,7 | 1.8 | 11.2 | 172 | 4,61 | 3.5 | 35 | 53 |
2 × 6 | 1 / 2,74 | 0,7 | 1.8 | 12.2 | 221 | 3,08 | 3.5 | 45 | 66 |
2 × 10 | 7 / 1,33 | 0,7 | 1.8 | 14.7 | 328 | 1,83 | 3.5 | 63 | 90 |
2 × 16 | 7 / 1,67 | 0,7 | 1.8 | 16.7 | 460 | 1.15 | 3.5 | 84 | 117 |
2 × 25 | 7 / 2.10 | 0.9 | 1.8 | 20.1 | 683 | 0,727 | 3.5 | 113 | 151 |
2 × 35 | 7 / 2,48 | 0.9 | 1.8 | 22.4 | 900 | 0,524 | 3.5 | 139 | 181 |
2 × 50 | 10 / 2,56 | 1,0 | 1.8 | 19,0 | 1,037 | 0,387 | 3.5 | 161 | 210 |
2 × 70 | 14 / 2,56 | 1.1 | 1.8 | 21.8 | 1,446 | 0,268 | 3.5 | 204 | 257 |
2 × 95 | 19 / 2,56 | 1.1 | 2 | 24.7 | 1,967 | 0,193 | 3.5 | 252 | 310 |
2 × 120 | 24 / 2,56 | 1.2 | 2.1 | 27.1 | 2,444 | 0,153 | 3.5 | 291 | 351 |
2 × 150 | 30 / 2,56 | 1.4 | 2.2 | 30.3 | 3.008 | 0,124 | 3.5 | 333 | 393 |
2 × 185 | 37 / 2,56 | 1.6 | 2.3 | 33.5 | 3,772 | 0,0991 | 3.5 | 385 | 445 |
2 × 240 | 48 / 2,56 | 1.7 | 2.5 | 37.7 | 4,909 | 0,0754 | 3.5 | 457 | 516 |
2 × 300 | 60 / 2,56 | 1.8 | 2.7 | 41.4 | 6.090 | 0,0601 | 3.5 | 527 | 583 |
3 × 1,5 | 1 / 1,38 | 0,7 | 1.8 | 9.9 | 127 | 12.1 | 3.5 | 20 | 31 |
3 × 2,5 | 1 / 1,76 | 0,7 | 1.8 | 10.7 | 163 | 7.56 | 3.5 | 27 | 41 |
3 × 4 | 1 / 2.23 | 0,7 | 1.8 | 11.8 | 216 | 4,61 | 3.5 | 35 | 53 |
3 × 6 | 1 / 2,74 | 0,7 | 1.8 | 12.9 | 285 | 3,08 | 3.5 | 45 | 66 |
3 × 10 | 7 / 1,33 | 0,7 | 1.8 | 15.6 | 429 | 1,83 | 3.5 | 63 | 90 |
3 × 16 | 7 / 1,67 | 0,7 | 1.8 | 17.7 | 613 | 1.15 | 3.5 | 84 | 117 |
3 × 25 | 7 / 2.10 | 0.9 | 1.8 | 21.4 | 923 | 0,727 | 3.5 | 113 | 151 |
3 × 35 | 7 / 2,48 | 0.9 | 1.8 | 23.8 | 1,229 | 0,524 | 3.5 | 139 | 181 |
3 × 50 | 10 / 2,56 | 1,0 | 1.8 | 22.5 | 1,517 | 0,387 | 3.5 | 161 | 210 |
3 × 70 | 14 / 2,56 | 1.1 | 1.9 | 26.1 | 2,133 | 0,268 | 3.5 | 204 | 257 |
3 × 95 | 19 / 2,56 | 1.1 | 2 | 29.3 | 2,891 | 0,193 | 3.5 | 252 | 310 |
3 × 120 | 24 / 2,56 | 1.2 | 2.1 | 32.3 | 3.600 | 0,153 | 3.5 | 291 | 351 |
3 × 150 | 30 / 2,56 | 1.4 | 2.3 | 36.1 | 4,440 | 0,124 | 3.5 | 333 | 393 |
3 × 185 | 37 / 2,56 | 1.6 | 2.4 | 40,1 | 5,579 | 0,0991 | 3.5 | 385 | 445 |
3 × 240 | 48 / 2,56 | 1.7 | 2.6 | 45,5 | 7,288 | 0,0754 | 3.5 | 457 | 516 |
3 × 300 | 60 / 2,56 | 1.8 | 2.8 | 50,0 | 9,045 | 0,0601 | 3.5 | 527 | 583 |
4 × 1,5 | 1 / 1,38 | 0,7 | 1.8 | 10.7 | 152 | 12.1 | 3.5 | 20 | 31 |
4 × 2,5 | 1 / 1,76 | 0,7 | 1.8 | 11.6 | 199 | 7.56 | 3.5 | 27 | 41 |
4 × 4 | 1 / 2.23 | 0,7 | 1.8 | 12.7 | 267 | 4,61 | 3.5 | 35 | 53 |
4 × 6 | 1 / 2,74 | 0,7 | 1.8 | 13.9 | 356 | 3,08 | 3.5 | 45 | 66 |
4 × 10 | 7 / 1,33 | 0,7 | 1.8 | 17,0 | 542 | 1,83 | 3.5 | 63 | 90 |
4 × 16 | 7 / 1,67 | 0,7 | 1.8 | 19.4 | 782 | 1.15 | 3.5 | 84 | 117 |
4 × 25 | 7 / 2.10 | 0.9 | 1.8 | 23.5 | 1,185 | 0,727 | 3.5 | 113 | 151 |
4 × 35 | 7 / 2,48 | 0.9 | 1.8 | 26.3 | 1,586 | 0,524 | 3.5 | 139 | 181 |
4 × 50 | 10 / 2,56 | 1,0 | 1.9 | 25.5 | 1,999 | 0,387 | 3.5 | 161 | 210 |
4 × 70 | 14 / 2,56 | 1.1 | 2 | 29.4 | 2,810 | 0,268 | 3.5 | 204 | 257 |
4 × 95 | 19 / 2,56 | 1.1 | 2.1 | 33.5 | 3,823 | 0,193 | 3.5 | 252 | 310 |
4 × 120 | 24 / 2,56 | 1.2 | 2.3 | 37,2 | 4,783 | 0,153 | 3.5 | 291 | 351 |
4 × 150 | 30 / 2,56 | 1.4 | 2.4 | 41.3 | 5,879 | 0,124 | 3.5 | 333 | 393 |
4 × 185 | 37 / 2,56 | 1.6 | 2.6 | 46.5 | 7.434 | 0,0991 | 3.5 | 385 | 445 |
4 × 240 | 48 / 2,56 | 1.7 | 2.8 | 52.7 | 9,701 | 0,0754 | 3.5 | 457 | 516 |
4 × 300 | 60 / 2,56 | 1.8 | 3 | 57,9 | 12.030 | 0,0601 | 3.5 | 527 | 583 |
5 × 1,5 | 1 / 1,38 | 0,7 | 1.8 | 11.5 | 179 | 12.1 | 3.5 | 20 | 31 |
5 × 2,5 | 1 / 1,76 | 0,7 | 1.8 | 12.5 | 236 | 7.56 | 3.5 | 27 | 41 |
5 × 4 | 1 / 2.23 | 0,7 | 1.8 | 13.8 | 321 | 4,61 | 3.5 | 35 | 53 |
5 × 6 | 1 / 2,74 | 0,7 | 1.8 | 15.2 | 430 | 3,08 | 3.5 | 45 | 66 |
5 × 10 | 7 / 1,33 | 0,7 | 1.8 | 18.6 | 659 | 1,83 | 3.5 | 63 | 90 |
5 × 16 | 7 / 1,67 | 0,7 | 1.8 | 21.3 | 957 | 1.15 | 3.5 | 84 | 117 |
5 × 25 | 7 / 2.10 | 0.9 | 1.8 | 25.9 | 1.456 | 0,727 | 3.5 | 113 | 151 |
5 × 35 | 7 / 2,48 | 0.9 | 1.8 | 28.9 | 1,955 | 0,524 | 3.5 | 139 | 181 |
5 × 50 | 19 / 1,86 | 1,0 | 2 | 28.9 | 2,502 | 0,387 | 3.5 | 161 | 210 |
5 × 70 | 14 / 2,56 | 1.1 | 2.1 | 33.6 | 3,525 | 0,268 | 3.5 | 204 | 257 |
5 × 95 | 19 / 2,56 | 1.1 | 2.3 | 38,2 | 4,798 | 0,193 | 3.5 | 252 | 310 |
5 × 120 | 24 / 2,56 | 1.2 | 2.4 | 42.3 | 5,990 | 0,153 | 3.5 | 291 | 351 |
5 × 150 | 30 / 2,56 | 1.4 | 2.6 | 47,3 | 7,393 | 0,124 | 3.5 | 333 | 393 |
5 × 185 | 37 / 2,56 | 1.6 | 2.8 | 52.6 | 9,312 | 0,0991 | 3.5 | 385 | 445 |
5 × 240 | 48 / 2,56 | 1.7 | 3 | 59,5 | 12,137 | 0,0754 | 3.5 | 457 | 516 |
5 × 300 | 60 / 2,56 | 1.8 | 3.2 | 65,6 | 15.064 | 0,0601 | 3.5 | 527 | 583 |
3 × 2,5 + 1 × 1,5 | 1 / 1,76 | 0,7 | 1.8 | 11.3 | 187 | 7.56 | 3.5 | 27 | 41 |
3 × 4 + 1 × 2,5 | 1 / 2.23 | 0,7 | 1.8 | 12.4 | 250 | 4,61 | 3.5 | 35 | 53 |
3 × 6 + 1 × 4 | 1 / 2,74 | 0,7 | 1.8 | 13.6 | 334 | 3,08 | 3.5 | 45 | 66 |
3 × 10 + 1 × 6 | 7 / 1,33 | 0,7 | 1.8 | 16.2 | 494 | 1,83 | 3.5 | 63 | 90 |
3 × 16 + 1 × 10 | 7 / 1,67 | 0,7 | 1.8 | 18.8 | 721 | 1.15 | 3.5 | 84 | 117 |
3 × 25 + 1 × 16 | 7 / 2.10 | 0.9 | 1.8 | 22.5 | 1,083 | 0,727 | 3.5 | 113 | 151 |
3 × 35 + 1 × 16 | 7 / 2,48 | 0.9 | 1.8 | 24.6 | 1,382 | 0,524 | 3.5 | 139 | 181 |
3 × 50 + 1 × 25 | 10 / 2,56 | 1,0 | 1.8 | 24.9 | 1,787 | 0,387 | 3.5 | 161 | 210 |
3 × 70 + 1 × 35 | 14 / 2,56 | 1.1 | 1.9 | 29.2 | 2,515 | 0,268 | 3.5 | 204 | 257 |
3 × 95 + 1 × 50 | 19 / 2,56 | 1.1 | 2.1 | 33,2 | 3,421 | 0,193 | 3.5 | 252 | 310 |
3 × 120 + 1 × 70 | 24 / 2,56 | 1.2 | 2.2 | 36.8 | 4,339 | 0,153 | 3.5 | 291 | 351 |
3 × 150 + 1 × 70 | 30 / 2,56 | 1.4 | 2.3 | 40.4 | 5,180 | 0,124 | 3.5 | 333 | 393 |
3 × 185 + 1 × 95 | 37 / 2,56 | 1.6 | 2.5 | 45,5 | 6.621 | 0,0991 | 3.5 | 385 | 445 |
3 × 240 + 1 × 120 | 48 / 2,56 | 1.7 | 2.7 | 51,1 | 8.567 | 0,0754 | 3.5 | 457 | 516 |
3 × 300 + 1 × 150 | 60 / 2,56 | 1.8 | 2.9 | 56,5 | 10.624 | 0,0601 | 3.5 | 527 | 583 |
3 × 2,5 + 2 × 1,5 | 1 / 1,76 | 0,7 | 1.8 | 12.1 | 213 | 7.56 | 3.5 | 27 | 41 |
3 × 4 + 2 × 2,5 | 1 / 2.23 | 0,7 | 1.8 | 13.3 | 287 | 4,61 | 3.5 | 35 | 53 |
3 × 6 + 2 × 4 | 1 / 2,74 | 0,7 | 1.8 | 14.6 | 386 | 3,08 | 3.5 | 45 | 66 |
3 × 10 + 2 × 6 | 7 / 1,33 | 0,7 | 1.8 | 17.2 | 566 | 1,83 | 3.5 | 63 | 90 |
3 × 16 + 2 × 10 | 7 / 1,67 | 0,7 | 1.8 | 20.2 | 837 | 1.15 | 3.5 | 84 | 117 |
3 × 25 + 2 × 16 | 7 / 2.10 | 0.9 | 1.8 | 24.0 | 1,254 | 0,727 | 3.5 | 113 | 151 |
3 × 35 + 2 × 16 | 7 / 2,48 | 0.9 | 1.8 | 25.9 | 1,550 | 0,524 | 3.5 | 139 | 181 |
3 × 50 + 2 × 25 | 10 / 2,56 | 1,0 | 1.9 | 26.2 | 2,040 | 0,387 | 3.5 | 161 | 210 |
3 × 70 + 2 × 35 | 14 / 2,56 | 1.1 | 2 | 30.2 | 2,852 | 0,268 | 3.5 | 204 | 257 |
3 × 95 + 2 × 50 | 19 / 2,56 | 1.1 | 2.2 | 34.3 | 3,874 | 0,193 | 3.5 | 252 | 310 |
3 × 120 + 2 × 70 | 24 / 2,56 | 1.2 | 2.3 | 37.9 | 4,970 | 0,153 | 3.5 | 291 | 351 |
3 × 150 + 2 × 70 | 30 / 2,56 | 1.4 | 2.4 | 42.3 | 5,849 | 0,124 | 3.5 | 333 | 393 |
3 × 185 + 2 × 95 | 37 / 2,56 | 1.6 | 2.6 | 47,7 | 7,533 | 0,0991 | 3.5 | 385 | 445 |
3 × 240 + 2 × 120 | 48 / 2,56 | 1.7 | 2.8 | 53,6 | 9,715 | 0,0754 | 3.5 | 457 | 516 |
3 × 300 + 2 × 150 | 60 / 2,56 | 1.8 | 3 | 59,7 | 12.057 | 0,0601 | 3.5 | 527 | 583 |
4 × 2,5 + 1 × 1,5 | 1 / 1,76 | 0,7 | 1.8 | 12.3 | 225 | 7.56 | 3.5 | 27 | 41 |
4 × 4 + 1 × 2,5 | 1 / 2.23 | 0,7 | 1.8 | 13.6 | 304 | 4,61 | 3.5 | 35 | 53 |
4 × 6 + 1 × 4 | 1 / 2,74 | 0,7 | 1.8 | 14.9 | 408 | 3,08 | 3.5 | 45 | 66 |
4 × 10 + 1 × 6 | 7 / 1,33 | 0,7 | 1.8 | 17.9 | 612 | 1,83 | 3.5 | 63 | 90 |
4 × 16 + 1 × 10 | 7 / 1,67 | 0,7 | 1.8 | 20.7 | 897 | 1.15 | 3.5 | 84 | 117 |
4 × 25 + 1 × 16 | 7 / 2.10 | 0.9 | 1.8 | 24.9 | 1,355 | 0,727 | 3.5 | 113 | 151 |
4 × 35 + 1 × 16 | 7 / 2,48 | 0.9 | 1.8 | 27.4 | 1,752 | 0,524 | 3.5 | 139 | 181 |
4 × 50 + 1 × 25 | 10 / 2,56 | 1,0 | 1.9 | 26.6 | 2,241 | 0,387 | 3.5 | 161 | 210 |
4 × 70 + 1 × 35 | 14 / 2,56 | 1.1 | 2.1 | 30.8 | 3,159 | 0,268 | 3.5 | 204 | 257 |
4 × 95 + 1 × 50 | 19 / 2,56 | 1.1 | 2.2 | 34.7 | 4,278 | 0,193 | 3.5 | 252 | 310 |
4 × 120 + 1 × 70 | 24 / 2,56 | 1.2 | 2.4 | 38.7 | 5,431 | 0,153 | 3.5 | 291 | 351 |
4 × 150 + 1 × 70 | 30 / 2,56 | 1.4 | 2.5 | 43.5 | 6.571 | 0,124 | 3.5 | 333 | 393 |
4 × 185 + 1 × 95 | 37 / 2,56 | 1.6 | 2.7 | 48.3 | 8,340 | 0,0991 | 3.5 | 385 | 445 |
4 × 240 + 1 × 120 | 48 / 2,56 | 1.7 | 2.9 | 54.9 | 10,838 | 0,0754 | 3.5 | 457 | 516 |
4 × 300 + 1 × 150 | 60 / 2,56 | 1.8 | 3.1 | 60,6 | 13,443 | 0,0601 | 3.5 | 527 | 583 |
VERPACKUNG & VERSAND
Verschiedene paket für kunden wählen!
Unsere Exportverpackung für Elektrokabel wurde speziell angefertigt, um sicherzustellen, dass die Qualität der Produkte während des Transports nicht beeinträchtigt wird. Unser elektrisches Kabel verwendet ein elektrisches Kabelrad für die Verpackung. Das Rad kann aus Stahl, Stahlrahmen und begastem Holz oder vergasten Holzkisten bestehen. Wir verwenden unterschiedliche Verpackungen für unterschiedliche Kabellängen, um sicherzustellen, dass bei der Lieferung der Produkte keine Probleme auftreten.
1. Wenn der Durchmesser des Rades länger als 2 Meter ist, benutzen wir alles Stahlrad, um die Produkte zu verpacken
2. Wenn der Durchmesser des Rades zwischen 1,4 m und 1,8 m liegt, verwenden wir Stahlrahmen und begastes Holz, um die Produkte zu verpacken.
3. Wenn der Durchmesser des Rades weniger als 1,4 Meter beträgt, verwenden wir das begaste Holzrad, um die Produkte zu verpacken
4. Für das Verpacken der elektrischen Drähte und der kleinen Menge Kabel verwenden wir die begaste Holzkiste, um zu verpacken.
