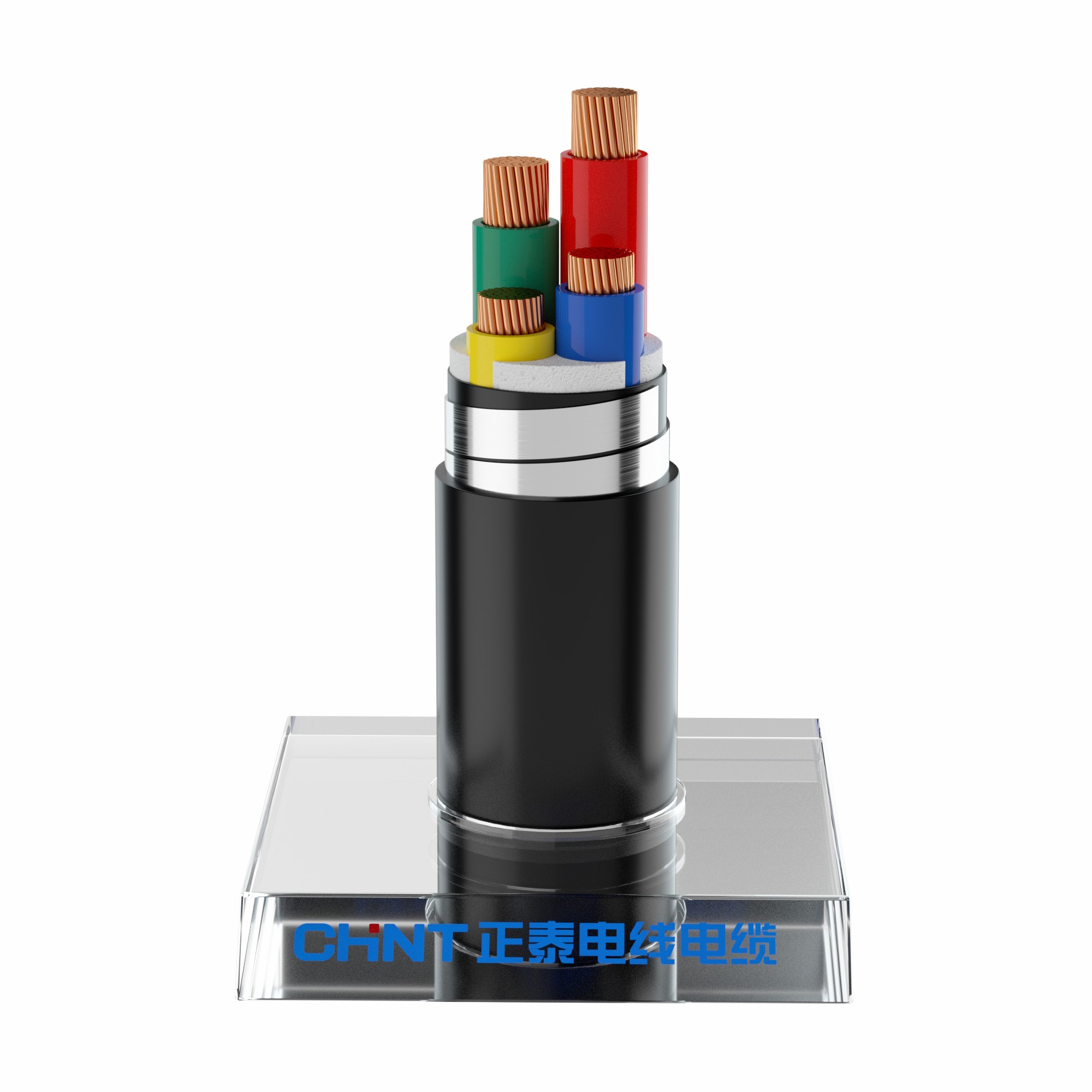

Name: | 4 Kern-gepanzertes Kabel | Standard: | IEC60502-1 |
---|---|---|---|
Äußere Hülle: | PVC-Hülle | Nennspannung: | 0.6/1kV |
Farbe: | Schwarzes | LEITER: | Fester kupferner Leiter |
Markieren: | Gepanzertes Kabel PVC-Hüllen-SWA,gepanzertes Netzkabel 1KV |
Fester kupferner Kern-gepanzertes Kabel Leiter PVC-Hüllen-1KV 4
4 Kern gepanzertes CableDescription
Leiter: Klasse 2
Isolierung: XLPE
Hülle: PVC
Kabel Speciification: Feuerbeständig
Markierung: Prägung oder Druck
Hüllen-Farbe: Schwarzes oder Rot
4 Kern-gepanzerte Kabel-Anwendung:
1)Diese Kabel sind für direkte Beerdigung oder für Installation auf Behältern oder Rohren am passendsten, in der es gibt
ein Risiko des mechanischen Schadens, gepanzerte Kabel sollte verwendet werden.
2) für das Legen in Boden entlang Weg mit der großen Unebenheit fähig, externe mechanische Kräfte zu tragen.
4 Kern-gepanzerter Kabel-Bau
Leiter: Ebene getempertes kupfernes festes oder angeschwemmt (Klasse 1 oder 2) Leiter, der mit Iec 60228 einwilligt
Isolierung: verbundene XLPE Querisolierung 90°C, die mit Iec 60502-1 übereinstimmt
Zwischenzeilig schreiben: PVC-Art St.2 bis Iec 60502, schwarz
Armierung: STA (Stahl-Band-Armierung)
Hülle: PVC-Art St.2 bis Iec 60502, schwarz
Standards:
International: IEC 60502, IEC 60228, IEC 60332, IEC 60754
China: GB∕T 12706.1-2008, GB∕T 19666-2005
Andere Standards wie BS, Vde und ICEA auf Anfrage
Technische Daten
Nennspannung: 0.6/1kV
Maximale Temperatur am Leiter: unter Normal (90°C), Notfall (130°C) oder schließen nicht mehr als 5 s kurz (250°C) Bedingungen.
Min. Ambient Temp. 0°C, nach Installation und nur wenn Kabel in einer örtlich festgelegten Position ist
Min. Biegungsradius: 20 x-Kabel O.D für einkernige nicht-gepanzerte Kabel
15 x-Kabel O.D für einkernige gepanzerte Kabel
15 x-Kabel O.D für mehradrige nicht-gepanzerte Kabel
12 x-Kabel O.D für mehradrige gepanzerte Kabel
4 Kern-gepanzertes Kabel-technische Spezifikationen
Nom. Querschnitt des Leiters | Strang-nein/Durchmesser. Vom Leiter | Isolierung | Stärke des Stahlbands | Hüllen-Stärke | Ca. O.D. | Ca. | Max. D.C Resistance des Leiters (℃ 20) | Prüfungs-Spannung Wechselstrom | Gegenwärtige Bewertung | |
Gewicht | In einer Luft (a) | Im Boden (A) | ||||||||
1×10 | 7/1.33 | 0,7 | 0,2 | 1,8 | 11,8 | 265 | 1,83 | 3,5 | 77 | 94 |
1×16 | 7/1.67 | 0,7 | 0,2 | 1,8 | 12,8 | 338 | 1,15 | 3,5 | 100 | 120 |
1×25 | 7/2.10 | 0,9 | 0,2 | 1,8 | 14,5 | 458 | 0,727 | 3,5 | 130 | 155 |
1×35 | 7/2.48 | 0,9 | 0,2 | 1,8 | 15,6 | 571 | 0,524 | 3,5 | 160 | 185 |
1×50 | 10/2.56 | 1,0 | 0,2 | 1,8 | 16,8 | 712 | 0,387 | 3,5 | 195 | 220 |
1×70 | 14/2.56 | 1,1 | 0,2 | 1,8 | 18,7 | 940 | 0,268 | 3,5 | 245 | 270 |
1×95 | 19/2.56 | 1,1 | 0,2 | 1,8 | 20,3 | 1209 | 0,193 | 3,5 | 300 | 320 |
1×120 | 24/2.56 | 1,2 | 0,2 | 1,8 | 22,0 | 1465 | 0,153 | 3,5 | 349 | 365 |
1×150 | 30/2.56 | 1,4 | 0,2 | 1,8 | 23,8 | 1757 | 0,124 | 3,5 | 400 | 410 |
1×185 | 37/2.56 | 1,6 | 0,2 | 1,8 | 25,9 | 2157 | 0,0991 | 3,5 | 465 | 465 |
1×240 | 48/2.58 | 1,7 | 0,2 | 1,8 | 28,3 | 2732 | 0,0754 | 3,5 | 550 | 540 |
1×300 | 60/2.58 | 1,8 | 0,2 | 1,9 | 30,9 | 3344 | 0,0601 | 3,5 | 635 | 610 |
1×400 | 60/2.93 | 2,0 | 0,2 | 2 | 34,4 | 4260 | 0,047 | 3,5 | 745 | 695 |
1×500 | 60/3.33 | 2,2 | 0,5 | 2,2 | 39,6 | 5673 | 0,0366 | 3,5 | 860 | 780 |
1×630 | 60/3.76 | 2,4 | 0,5 | 2,3 | 44,0 | 7133 | 0,0283 | 3,5 | 990 | 880 |
2×1.5 | 1/1.38 | 0,7 | 0,2 | 1,8 | 12,3 | 230 | 12,1 | 3,5 | 20 | 31 |
2×2.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 13,1 | 266 | 7,56 | 3,5 | 27 | 41 |
2×4 | 1/2.23 | 0,7 | 0,2 | 1,8 | 14,0 | 316 | 4,61 | 3,5 | 35 | 53 |
2×6 | 1/2.74 | 0,7 | 0,2 | 1,8 | 15,0 | 378 | 3,08 | 3,5 | 45 | 66 |
2×10 | 7/1.33 | 0,7 | 0,2 | 1,8 | 17,5 | 516 | 1,83 | 3,5 | 63 | 90 |
2×16 | 7/1.67 | 0,7 | 0,2 | 1,8 | 19,5 | 672 | 1,15 | 3,5 | 84 | 117 |
2×25 | 7/2.10 | 0,9 | 0,2 | 1,8 | 22,9 | 937 | 0,727 | 3,5 | 113 | 151 |
2×35 | 7/2.48 | 0,9 | 0,2 | 1,8 | 25,2 | 1181 | 0,524 | 3,5 | 139 | 181 |
2×50 | 10/2.56 | 1,0 | 0,2 | 1,8 | 21,8 | 1281 | 0,387 | 3,5 | 161 | 210 |
2×70 | 14/2.56 | 1,1 | 0,2 | 1,9 | 24,8 | 1734 | 0,268 | 3,5 | 204 | 257 |
2×95 | 19/2.56 | 1,1 | 0,2 | 2 | 27,5 | 2278 | 0,193 | 3,5 | 252 | 310 |
2×120 | 24/2.56 | 1,2 | 0,5 | 2,2 | 31,3 | 3095 | 0,153 | 3,5 | 291 | 351 |
2×150 | 30/2.56 | 1,4 | 0,5 | 2,3 | 34,5 | 3730 | 0,124 | 3,5 | 333 | 393 |
2×185 | 37/2.56 | 1,6 | 0,5 | 2,5 | 38,2 | 4618 | 0,0991 | 3,5 | 385 | 445 |
2×240 | 48/2.56 | 1,7 | 0,5 | 2,6 | 42,2 | 5832 | 0,0754 | 3,5 | 457 | 516 |
2×300 | 60/2.56 | 1,8 | 0,5 | 2,8 | 46,3 | 7142 | 0,0601 | 3,5 | 527 | 583 |
3×1.5 | 1/1.38 | 0,7 | 0,2 | 1,8 | 12,7 | 256 | 12,1 | 3,5 | 20 | 31 |
3×2.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 13,5 | 302 | 7,56 | 3,5 | 27 | 41 |
3×4 | 1/2.23 | 0,7 | 0,2 | 1,8 | 14,6 | 367 | 4,61 | 3,5 | 35 | 53 |
3×6 | 1/2.74 | 0,7 | 0,2 | 1,8 | 15,7 | 449 | 3,08 | 3,5 | 45 | 66 |
3×10 | 7/1.33 | 0,7 | 0,2 | 1,8 | 18,4 | 627 | 1,83 | 3,5 | 63 | 90 |
3×16 | 7/1.67 | 0,7 | 0,2 | 1,8 | 20,5 | 838 | 1,15 | 3,5 | 84 | 117 |
3×25 | 7/2.10 | 0,9 | 0,2 | 1,8 | 24,2 | 1191 | 0,727 | 3,5 | 113 | 151 |
3×35 | 7/2.48 | 0,9 | 0,2 | 1,8 | 26,6 | 1528 | 0,524 | 3,5 | 139 | 181 |
3×50 | 10/2.56 | 1,0 | 0,2 | 1,9 | 25,5 | 1814 | 0,387 | 3,5 | 161 | 210 |
3×70 | 14/2.56 | 1,1 | 0,2 | 2 | 29,0 | 2474 | 0,268 | 3,5 | 204 | 257 |
3×95 | 19/2.56 | 1,1 | 0,5 | 2,1 | 33,5 | 3598 | 0,193 | 3,5 | 252 | 310 |
3×120 | 24/2.56 | 1,2 | 0,5 | 2,3 | 36,7 | 4386 | 0,153 | 3,5 | 291 | 351 |
3×150 | 30/2.56 | 1,4 | 0,5 | 2,4 | 40,7 | 5332 | 0,124 | 3,5 | 333 | 393 |
3×185 | 37/2.56 | 1,6 | 0,5 | 2,5 | 44,6 | 6562 | 0,0991 | 3,5 | 385 | 445 |
3×240 | 48/2.56 | 1,7 | 0,5 | 2,8 | 50,2 | 8414 | 0,0754 | 3,5 | 457 | 516 |
3×300 | 60/2.56 | 1,8 | 0,5 | 2,9 | 54,9 | 10306 | 0,0601 | 3,5 | 527 | 583 |
4×1.5 | 1/1.38 | 0,7 | 0,2 | 1,8 | 13,5 | 291 | 12,1 | 3,5 | 20 | 31 |
4×2.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 14,4 | 348 | 7,56 | 3,5 | 27 | 41 |
4×4 | 1/2.23 | 0,7 | 0,2 | 1,8 | 15,5 | 430 | 4,61 | 3,5 | 35 | 53 |
4×6 | 1/2.74 | 0,7 | 0,2 | 1,8 | 16,7 | 534 | 3,08 | 3,5 | 45 | 66 |
4×10 | 7/1.33 | 0,7 | 0,2 | 1,8 | 19,8 | 758 | 1,83 | 3,5 | 63 | 90 |
4×16 | 7/1.67 | 0,7 | 0,2 | 1,8 | 22,2 | 1027 | 1,15 | 3,5 | 84 | 117 |
4×25 | 7/2.10 | 0,9 | 0,2 | 1,8 | 26,3 | 1479 | 0,727 | 3,5 | 113 | 151 |
4×35 | 7/2.48 | 0,9 | 0,2 | 1,8 | 29,1 | 1914 | 0,524 | 3,5 | 139 | 181 |
4×50 | 10/2.56 | 1,0 | 0,2 | 2 | 28,4 | 2334 | 0,387 | 3,5 | 161 | 210 |
4×70 | 14/2.56 | 1,1 | 0,5 | 2,1 | 33,6 | 3518 | 0,268 | 3,5 | 204 | 257 |
4×95 | 19/2.56 | 1,1 | 0,5 | 2,3 | 37,9 | 4638 | 0,193 | 3,5 | 252 | 310 |
4×120 | 24/2.56 | 1,2 | 0,5 | 2,4 | 41,8 | 5701 | 0,153 | 3,5 | 291 | 351 |
4×150 | 30/2.56 | 1,4 | 0,5 | 2,6 | 46,0 | 6912 | 0,124 | 3,5 | 333 | 393 |
4×185 | 37/2.56 | 1,6 | 0,5 | 2,7 | 51,0 | 8562 | 0,0991 | 3,5 | 385 | 445 |
4×240 | 48/2.56 | 1,7 | 0,5 | 3 | 57,7 | 11052 | 0,0754 | 3,5 | 457 | 516 |
4×300 | 60/2.56 | 1,8 | 0,5 | 3,1 | 62,7 | 13479 | 0,0601 | 3,5 | 527 | 583 |
5×1.5 | 1/1.38 | 0,7 | 0,2 | 1,8 | 14,3 | 328 | 12,1 | 3,5 | 20 | 31 |
5×2.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 15,3 | 397 | 7,56 | 3,5 | 27 | 41 |
5×4 | 1/2.23 | 0,7 | 0,2 | 1,8 | 16,6 | 497 | 4,61 | 3,5 | 35 | 53 |
5×6 | 1/2.74 | 0,7 | 0,2 | 1,8 | 18,0 | 623 | 3,08 | 3,5 | 45 | 66 |
5×10 | 7/1.33 | 0,7 | 0,2 | 1,8 | 21,4 | 895 | 1,83 | 3,5 | 63 | 90 |
5×16 | 7/1.67 | 0,7 | 0,2 | 1,8 | 24,1 | 1225 | 1,15 | 3,5 | 84 | 117 |
5×25 | 7/2.10 | 0,9 | 0,2 | 1,8 | 28,7 | 1780 | 0,727 | 3,5 | 113 | 151 |
5×35 | 7/2.48 | 0,9 | 0,2 | 1,9 | 31,9 | 2329 | 0,524 | 3,5 | 139 | 181 |
5×50 | 19/1.86 | 1,0 | 0,2 | 2,1 | 31,9 | 2879 | 0,387 | 3,5 | 161 | 210 |
5×70 | 14/2.56 | 1,1 | 0,5 | 2,2 | 37,8 | 4327 | 0,268 | 3,5 | 204 | 257 |
5×95 | 19/2.56 | 1,1 | 0,5 | 2,4 | 42,8 | 5740 | 0,193 | 3,5 | 252 | 310 |
5×120 | 24/2.56 | 1,2 | 0,5 | 2,5 | 46,8 | 7027 | 0,153 | 3,5 | 291 | 351 |
5×150 | 30/2.56 | 1,4 | 0,5 | 2,7 | 52,1 | 8591 | 0,124 | 3,5 | 333 | 393 |
5×185 | 37/2.56 | 1,6 | 0,5 | 2,9 | 57,5 | 10636 | 0,0991 | 3,5 | 385 | 445 |
5×240 | 48/2.56 | 1,7 | 0,5 | 3,2 | 64,5 | 13651 | 0,0754 | 3,5 | 457 | 516 |
5×300 | 60/2.56 | 1,8 | 0,5 | 3,4 | 71,0 | 16764 | 0,0601 | 3,5 | 527 | 583 |
3×2.5+1×1.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 14,1 | 334 | 7,56 | 3,5 | 27 | 41 |
3×4+1×2.5 | 1/2.23 | 0,7 | 0,2 | 1,8 | 15,2 | 410 | 4,61 | 3,5 | 35 | 53 |
3×6+1×4 | 1/2.74 | 0,7 | 0,2 | 1,8 | 16,4 | 508 | 3,08 | 3,5 | 45 | 66 |
3×10+1×6 | 7/1.33 | 0,7 | 0,2 | 1,8 | 19,0 | 701 | 1,83 | 3,5 | 63 | 90 |
3×16+1×10 | 7/1.67 | 0,7 | 0,2 | 1,8 | 21,6 | 959 | 1,15 | 3,5 | 84 | 117 |
3×25+1×16 | 7/2.10 | 0,9 | 0,2 | 1,8 | 25,3 | 1365 | 0,727 | 3,5 | 113 | 151 |
3×35+1×16 | 7/2.48 | 0,9 | 0,2 | 1,8 | 27,4 | 1689 | 0,524 | 3,5 | 139 | 181 |
3×50+1×25 | 10/2.56 | 1,0 | 0,2 | 1,9 | 27,9 | 2115 | 0,387 | 3,5 | 161 | 210 |
3×70+1×35 | 14/2.56 | 1,1 | 0,2 | 2 | 32,1 | 2896 | 0,268 | 3,5 | 204 | 257 |
3×95+1×50 | 19/2.56 | 1,1 | 0,5 | 2,2 | 37,4 | 4213 | 0,193 | 3,5 | 252 | 310 |
3×120+1×70 | 24/2.56 | 1,2 | 0,5 | 2,3 | 41,4 | 5251 | 0,153 | 3,5 | 291 | 351 |
3×150+1×70 | 30/2.56 | 1,4 | 0,5 | 2,4 | 45,0 | 6175 | 0,124 | 3,5 | 333 | 393 |
3×185+1×95 | 37/2.56 | 1,6 | 0,5 | 2,6 | 50,0 | 7731 | 0,0991 | 3,5 | 385 | 445 |
3×240+1×120 | 48/2.56 | 1,7 | 0,5 | 2,8 | 56,0 | 9857 | 0,0754 | 3,5 | 457 | 516 |
3×300+1×150 | 60/2.56 | 1,8 | 0,5 | 3 | 61,3 | 12042 | 0,0601 | 3,5 | 527 | 583 |
3×2.5+2×1.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 14,9 | 369 | 7,56 | 3,5 | 27 | 41 |
3×4+2×2.5 | 1/2.23 | 0,7 | 0,2 | 1,8 | 16,1 | 457 | 4,61 | 3,5 | 35 | 53 |
3×6+2×4 | 1/2.74 | 0,7 | 0,2 | 1,8 | 17,4 | 573 | 3,08 | 3,5 | 45 | 66 |
3×10+2×6 | 7/1.33 | 0,7 | 0,2 | 1,8 | 20,0 | 785 | 1,83 | 3,5 | 63 | 90 |
3×16+2×10 | 7/1.67 | 0,7 | 0,2 | 1,8 | 23,0 | 1092 | 1,15 | 3,5 | 84 | 117 |
3×25+2×16 | 7/2.10 | 0,9 | 0,2 | 1,8 | 26,8 | 1556 | 0,727 | 3,5 | 113 | 151 |
3×35+2×16 | 7/2.48 | 0,9 | 0,2 | 1,8 | 28,7 | 1874 | 0,524 | 3,5 | 139 | 181 |
3×50+2×25 | 10/2.56 | 1,0 | 0,2 | 2 | 29,1 | 2384 | 0,387 | 3,5 | 161 | 210 |
3×70+2×35 | 14/2.56 | 1,1 | 0,5 | 2,1 | 34,4 | 3583 | 0,268 | 3,5 | 204 | 257 |
3×95+2×50 | 19/2.56 | 1,1 | 0,5 | 2,3 | 38,5 | 4692 | 0,193 | 3,5 | 252 | 310 |
3×120+2×70 | 24/2.56 | 1,2 | 0,5 | 2,4 | 42,5 | 5909 | 0,153 | 3,5 | 291 | 351 |
3×150+2×70 | 30/2.56 | 1,4 | 0,5 | 2,5 | 46,8 | 6889 | 0,124 | 3,5 | 333 | 393 |
3×185+2×95 | 37/2.56 | 1,6 | 0,5 | 2,7 | 52,5 | 8744 | 0,0991 | 3,5 | 385 | 445 |
3×240+2×120 | 48/2.56 | 1,7 | 0,5 | 2,9 | 58,5 | 11068 | 0,0754 | 3,5 | 457 | 516 |
3×300+2×150 | 60/2.56 | 1,8 | 0,5 | 3,1 | 64,5 | 13551 | 0,0601 | 3,5 | 527 | 583 |
4×2.5+1×1.5 | 1/1.76 | 0,7 | 0,2 | 1,8 | 15,1 | 383 | 7,56 | 3,5 | 27 | 41 |
4×4+1×2.5 | 1/2.23 | 0,7 | 0,2 | 1,8 | 16,4 | 477 | 4,61 | 3,5 | 35 | 53 |
4×6+1×4 | 1/2.74 | 0,7 | 0,2 | 1,8 | 17,7 | 598 | 3,08 | 3,5 | 45 | 66 |
4×10+1×6 | 7/1.33 | 0,7 | 0,2 | 1,8 | 20,7 | 839 | 1,83 | 3,5 | 63 | 90 |
4×16+1×10 | 7/1.67 | 0,7 | 0,2 | 1,8 | 23,5 | 1159 | 1,15 | 3,5 | 84 | 117 |
4×25+1×16 | 7/2.10 | 0,9 | 0,2 | 1,8 | 27,7 | 1667 | 0,727 | 3,5 | 113 | 151 |
4×35+1×16 | 7/2.48 | 0,9 | 0,2 | 1,9 | 30,4 | 2107 | 0,524 | 3,5 | 139 | 181 |
4×50+1×25 | 10/2.56 | 1,0 | 0,2 | 2 | 29,5 | 2590 | 0,387 | 3,5 | 161 | 210 |
4×70+1×35 | 14/2.56 | 1,1 | 0,5 | 2,2 | 35,0 | 3900 | 0,268 | 3,5 | 204 | 257 |
4×95+1×50 | 19/2.56 | 1,1 | 0,5 | 2,3 | 39,3 | 5144 | 0,193 | 3,5 | 252 | 310 |
4×120+1×70 | 24/2.56 | 1,2 | 0,5 | 2,5 | 43,2 | 6386 | 0,153 | 3,5 | 291 | 351 |
4×150+1×70 | 30/2.56 | 1,4 | 0,5 | 2,6 | 48,3 | 7683 | 0,124 | 3,5 | 333 | 393 |
4×185+1×95 | 37/2.56 | 1,6 | 0,5 | 2,8 | 53,2 | 9566 | 0,0991 | 3,5 | 385 | 445 |
4×240+1×120 | 48/2.56 | 1,7 | 0,5 | 3 | 59,7 | 12219 | 0,0754 | 3,5 | 457 | 516 |
4×300+1×150 | 60/2.56 | 1,8 | 0,5 | 3,3 | 65,6 | 14985 | 0,0601 | 3,5 | 527 | 583 |
Einrichtungsrat
Nennspannung
Anwendungs-Standard: IEC/BS/UL/GB
Zahl von Kernen
Leiter-Größe u. Bau
Art der Isolierung
Gepanzert oder unarmored. Wenn Rüstung, die Rüstungsart u. Material
Die Anforderung der Hülle
Länge der Kabel-u. Verpackungs-Anforderung
Andere Anforderung
VERPACKUNG UND VERSCHIFFEN
Alles Kabel für den Export werden gut durch hölzerne Trommel oder Holz und Stahltrommel verpackt und geschützt.
Das Verpackungsmaterial wird vom Gewicht und von der Größe des Kabels abgehangen.
Die guten Informationen, die Fertigungsinformationen und die Informationen des Kunden werden fest auf jeder Größe der Trommel gedruckt.
Nach den gut verpackten Kabeltrommeln, die zum Seehafen geschickt werden, werden sie in 20 FT-Behälter oder in 40 FT-Behälter geladen. Alle Kabeltrommel werden fest durch Sicherheitsgurt geregelt, um sich, keine Bewegung während der Seefracht zu vergewissern.
Die Größe des Behälters wird entsprechend Gewicht Summe geladenen Waren oder gemäß der Anforderung des Kunden gewählt.
